Anti-Tyrosine hydroxylase antibody ValidAbTM
(HB7167)
Product overview
| Name | Anti-Tyrosine hydroxylase antibody ValidAbTM |
| Host | Mouse |
| Clonality | Monoclonal |
| Target | Tyrosine hydroxylase |
| Description | Antibody to tyrosine hydroxylase (TH) - the rate limiting enzyme in catecholamine synthesis and used as a marker for catecholaminergic (dopaminergic and noradrenergic) neurones in the CNS. Part of the ValidAb™ range of highly validated, data-rich antibodies. |
Write Your Own Review
Validation data
Figure 1. Tyrosine hydroxylase expressing dopaminergic midbrain neurons stained with HB7167.
Rat midbrain stained by HB7167 for tyrosine hydroxylase visualising dopaminergic neurons of the midbrain. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1,000 dilution). This was followed by a two-hour incubation with secondary antibody at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 40x objective in a z-stack (0.3µm spacing). The image was captured as a tilescan using DAP and L5 filters with the following exposures respectively: 30ms and 7mss. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 2. Tyrosine hydroxylase expressing dopaminergic projections to the caudate putamen.
Rat midbrain fibres stained by HB7167 for tyrosine hydroxylase to visualise dopaminergic fibres alongside HB6498 to stain NeuN. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1,000 dilution) and HB6498 (1:1,000 dilution). This was followed by a two-hour incubation with secondary antibodies at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540 and polyclonal goat anti-rabbit DyLight 650, Thermofisher, 11804574). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 40x objective in a z-stack (0.62µm spacing). The image was captured as a tilescan using DAP, RHO and Y5 filters with the following exposures respectively: 49ms, 10ms and 12ms. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 3. Concentration response of HB7167 staining in paraffin embedded horizontal rat brain sections.
HB7167 stains dopaminergic terminals in rat striatum and midbrain dopaminergic fibres with an extremely high signal/noise ratio at dilutions as low as 1:2,000 (0.5µg/ml). Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 70% ethanol and embedded in paraffin. Deparaffinization was carried out following cutting of the tissue block into 5µm sections. Antigen retrieval was carried out using citrate buffer (HB8687) at 95°C for 20 minutes before sections were blocked in 1% BSA, 10% serum. HB7167 was incubated overnight (4°C) at concentrations ranging from 4 µg/ml (1:250 dilution) to 0.5µg/ml (1:2,000 dilution). Following washing and peroxide blocking with 0.3% H2O2, the sections were incubated in HB11345 (goat anti-mouse H&L biotin antibody) for 1 hour at room temperature (1:300 dilution). Following subsequent washes, the sections were incubated in HB5255 (Streptavidin HRP) for 30 minutes at room temperature (1:500 dilution). The reaction was developed using DAB (HB0687) and counterstained using hematoxylin (HB6189) before sections were dehydrated and mounted using DPX. For more details, please see our paraffin embedded immunohistochemistry protocol. Images were taken on a standard widefield microscope using brightfield illumination and either 5x or 40x objectives.
Figure 4. Tyrosine hydroxylase expression in various tissue lysates and preparations (MES buffered Bis-Tris gel).
HB7167 revealed a ≈72kDa band associated with tyrosine hydroxylase only in neural tissue samples. Please note tyrosine hydroxylase runs at a higher apparent molecular weight in MES buffered Tris-Bis gels. Method: mouse brain and rat brain membrane (P2) and cytosol fractions were prepared following previous work (Molnar et al., 1993. Neuroscience 53:307-326) from freshly collected adult brains. Other tissue lysates were prepared following established protocols from freshly dissected tissue (see our guide on WB sample preparation). Samples were loaded (20µg / lane) onto a 4-20% bis-tris acrylamide gel alongside a protein ladder before being run at 180V for 45 minutes. Wet transfer to a PVDF membrane was completed in 90 minutes using 400mA. The membrane was blocked for 2hrs in 5% non-fat dry milk before being incubated overnight at 4°C in HB7167 at a 1:1,000 dilution. Following washing, the membrane was incubated in secondary antibody (1:10,000 dilution, Polyclonal goat anti-mouse HRP conjugated, Sigma, A3682) for 2hrs. For more detail please see our Western blotting protocol. Detection was accomplished using Clarity Western ECL substrate (BioRad, 1705061) and a Licor Odyssey Fc imaging system (ECL channel: 5 min exposure, 700nm channel: 30 sec exposure). Following imaging the membrane was stripped with two changes of stripping buffer (HB7756) before being washed, blocked for 2 hours in 5% non-fat dry milk and incubated in HB9177 (mouse monoclonal anti-GAPDH, 1:4,000 dilution, 0.25µg/ml) overnight at 4°C. Following washing the membrane was incubated in a 1:10,000 dilution of a polyclonal goat anti-mouse HRP conjugated secondary antibody (Sigma Aldrich A3682) for 2hrs and visualised again using Clarity Western ECL substrate (BioRad, 1705061) and a Licor Odyssey Fc imaging system (ECL channel: 4 min exposure, 700nm channel: 30 sec exposure).
Figure 5. Independent antibody validation of HB7167 and HB6589 in dopaminergic midbrain neurons.
The staining patterns of HB7167 and HB6589 completely overlap in rat midbrain dopaminergic neurons showing strong evidence for antibody specificity. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1000 dilution) and HB6589 (1:1000 dilution). This was followed by a two-hour incubation with secondary antibodies at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540 and polyclonal donkey anti-chicken DyLight 488, Thermofisher, A78948). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 100x objective in a z-stack (0.22µm spacing). The image was captured as a tilescan using A4 (72ms @1x gain exposure), GFP (70ms @ 1x gain exposure) and Y3 (10ms @ 3.3x gain exposure) filters. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 6. Concentration response of HB7167 staining in rat striatum.
HB7167 stains rat dopaminergic terminals in the striatum with high signal to noise at dilutions down to 1:8,000. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 and HB6498 (1:1,000 (1µg/ml) to 1:8,000 (0.125µg/ml) dilutions). This was followed by a two-hour incubation with secondary antibody at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540 and polyclonal goat anti-rabbit DyLight 650, Thermofisher 11804574). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol.
Images were captured using a Leica DMI6000B inverted epifluorescence microscope and a 100x objective in a z-stack (0.6µm spacing). Stacks were deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682). Exposure times were as follows:
• 1:1,000 – DAP: 10ms, RHO: 42ms, Y5: 27ms
• 1:2,000 – DAP: 10ms, RHO: 118.9ms, Y5: 92ms
• 1:4,000 – DAP: 10ms, RHO: 100.2ms, Y5: 139ms
• 1:8,000 – DAP: 10ms, RHO: 128.2ms, Y5: 161ms
Figure 7. Tyrosine hydroxylase staining in rat striatum visualized using HB7167.
HB7167 effectively stains the dense network of dopaminergic terminals in the caudate putamen of paraffin embedded horizontal rat brain sections. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 70% ethanol and embedded in paraffin. Deparaffinization was carried out following cutting of the tissue block into 5µm sections. Antigen retrieval was carried out using citrate buffer (HB8687) at 95°C for 20 minutes before sections were blocked in 1% BSA, 10% serum. HB7167 was incubated overnight (4°C) at 1µg/ml (1:1,000 dilution). Following washing and peroxide blocking with 0.3% H2O2, the sections were incubated in HB11345 (goat anti-mouse H&L biotin antibody) for 1 hour at room temperature (1:300 dilution). Following subsequent washes the sections were incubated in HB5255 (Streptavidin HRP) for 30 minutes at room temperature (1:500 dilution). The reaction was developed using DAB (HB0687) and counterstained using hematoxylin (HB6189) before sections were dehydrated and mounted using DPX. For more details, please see our paraffin embedded immunohistochemistry protocol. Images were taken on a standard widefield microscope using brightfield illumination and a 5x objective.

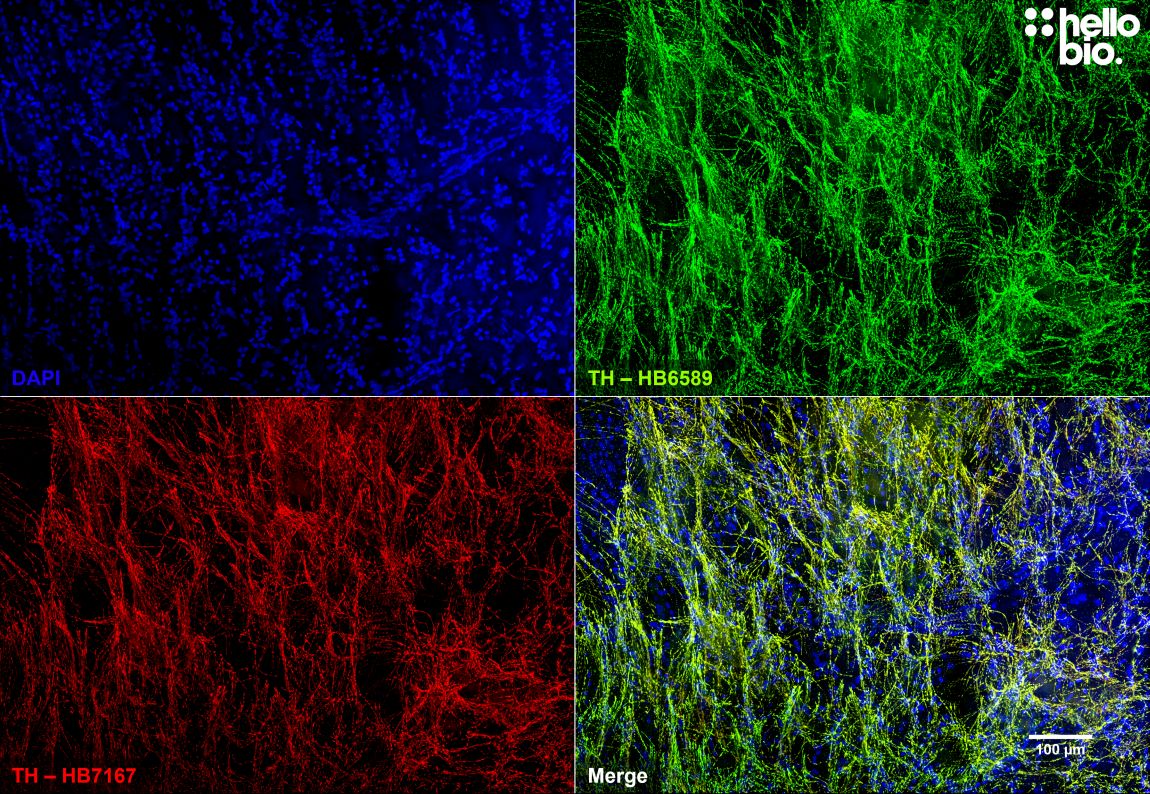

Figure 8. Independent antibody validation of HB7167 and HB6589 in dopaminergic projections.
The staining patterns of HB7167 and HB6589 completely overlap in rat dopaminergic projections showing strong evidence for antibody specificity. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1,000 dilution) and HB6589 (1:1,000 dilution). This was followed by a two-hour incubation with secondary antibodies at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540 and polyclonal donkey anti-chicken DyLight 488, Thermofisher, A78948). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 40x objective in a z-stack (0.62µm spacing). The image was captured as a tilescan using DAP (49ms exposure), L5 (15ms exposure) and RHO (10ms exposure) filters. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 9. Tyrosine hydroxylase expression in various tissue lysates and preparations.
HB7167 revealed the ≈62kDa band associated with tyrosine hydroxylase only in neural tissue samples. Method: mouse brain and rat brain membrane (P2) and cytosol fractions were prepared following previous work (Molnar et al., 1993. Neuroscience 53:307-326) from freshly collected adult brains. Other tissue lysates were prepared following established protocols from freshly dissected tissue (see our guide on WB sample preparation). Samples were loaded (20µg / lane) onto a 12% acrylamide gel alongside a protein ladder before being run at 60V for 30 minutes followed by 160V for 60 minutes. Wet transfer to a PVDF membrane was completed in 90 minutes using 400mA. The membrane was blocked for 2hrs in 5% non-fat dry milk before being incubated overnight at 4°C in HB7167 at a 1:1,000 dilution. Following washing, the membrane was incubated in secondary antibody (1:10,000 dilution, Polyclonal goat anti-mouse HRP conjugated, Sigma, A3682) for 2hrs. For more detail please see our Western blotting protocol. Detection was accomplished using Clarity Western ECL substrate (BioRad, 1705061) and a Licor Odyssey Fc imaging system (ECL channel: 5 min exposure, 700nm channel: 30 sec exposure). Following imaging the membrane was stripped with two changes of stripping buffer (HB7756) before being washed, blocked for 2 hours in 5% non-fat dry milk and incubated in HB9177 (mouse monoclonal anti-GAPDH, 1:4,000 dilution, 0.25µg/ml) overnight at 4°C. Following washing the membrane was incubated in a 1:10,000 dilution of a polyclonal goat anti-mouse HRP conjugated secondary antibody (Sigma Aldrich A3682) for 2hrs and visualized again using Clarity Western ECL substrate (BioRad, 1705061) and a Licor Odyssey Fc imaging system (ECL channel: 4 min exposure, 700nm channel: 30 sec exposure).

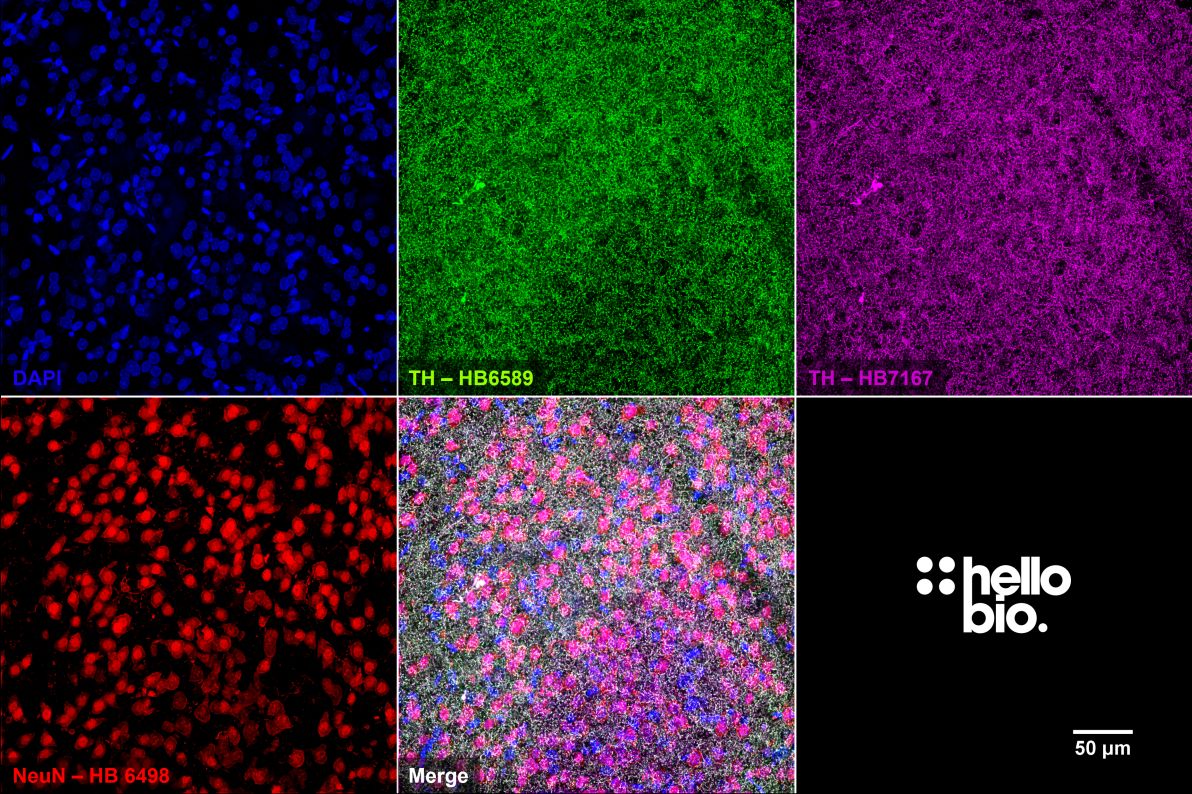

Figure 10. Independent antibody validation of HB7167 and HB6589 in CPu.
The staining patterns of HB7167 and HB6589 completely overlap in rat caudate putamen (CPu) showing strong evidence for antibody specificity. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1000 dilution), HB6498 (1:1000 dilution) and HB6589 (1:1000 dilution). This was followed by a two-hour incubation with secondary antibodies at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540, polyclonal donkey anti-chicken DyLight 488, Thermofisher, A78948 and polyclonal goat anti-rabbit DyLight 650, Thermofisher, 11804574). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 40x objective in a z-stack (0.3µm spacing). The image was captured as a tilescan using DAP (10ms exposure), L5 (15ms exposure), RHO (10ms exposure) and Y5 (12ms exposure) filters. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 11. Tyrosine hydroxylase staining of dopaminergic nuclei in rat midbrain visualized using biotin-streptavidin detection.
HB7167 staining visualizes the large population of dopaminergic neurons in the rat midbrain. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 70% ethanol and embedded in paraffin. Deparaffinization was carried out following cutting of the tissue block into 5µm sections. Antigen retrieval was carried out using citrate buffer (HB8687) at 95°C for 20 minutes before sections were blocked in 1% BSA, 10% serum. HB7167 was incubated overnight (4°C) at 2µg/ml (1:500 dilution). Following washing and peroxide blocking with 0.3% H2O2, the sections were incubated in HB11345 (goat anti-mouse H&L biotin antibody) for 1 hour at room temperature (1:300 dilution). Following subsequent washes the sections were incubated in HB5255 (Streptavidin HRP) for 30 minutes at room temperature (1:500 dilution). The reaction was developed using DAB (HB0687) and counterstained using hematoxylin (HB6189) before sections were dehydrated and mounted using DPX. For more details, please see our paraffin embedded immunohistochemistry protocol. Images were taken on a standard widefield microscope using brightfield illumination and a 5x objective.
Figure 1. Tyrosine hydroxylase expressing dopaminergic midbrain neurons stained with HB7167.
Rat midbrain stained by HB7167 for tyrosine hydroxylase visualising dopaminergic neurons of the midbrain. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1,000 dilution). This was followed by a two-hour incubation with secondary antibody at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 40x objective in a z-stack (0.3µm spacing). The image was captured as a tilescan using DAP and L5 filters with the following exposures respectively: 30ms and 7mss. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 2. Tyrosine hydroxylase expressing dopaminergic projections to the caudate putamen.
Rat midbrain fibres stained by HB7167 for tyrosine hydroxylase to visualise dopaminergic fibres alongside HB6498 to stain NeuN. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1,000 dilution) and HB6498 (1:1,000 dilution). This was followed by a two-hour incubation with secondary antibodies at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540 and polyclonal goat anti-rabbit DyLight 650, Thermofisher, 11804574). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 40x objective in a z-stack (0.62µm spacing). The image was captured as a tilescan using DAP, RHO and Y5 filters with the following exposures respectively: 49ms, 10ms and 12ms. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 3. Concentration response of HB7167 staining in paraffin embedded horizontal rat brain sections.
HB7167 stains dopaminergic terminals in rat striatum and midbrain dopaminergic fibres with an extremely high signal/noise ratio at dilutions as low as 1:2,000 (0.5µg/ml). Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 70% ethanol and embedded in paraffin. Deparaffinization was carried out following cutting of the tissue block into 5µm sections. Antigen retrieval was carried out using citrate buffer (HB8687) at 95°C for 20 minutes before sections were blocked in 1% BSA, 10% serum. HB7167 was incubated overnight (4°C) at concentrations ranging from 4 µg/ml (1:250 dilution) to 0.5µg/ml (1:2,000 dilution). Following washing and peroxide blocking with 0.3% H2O2, the sections were incubated in HB11345 (goat anti-mouse H&L biotin antibody) for 1 hour at room temperature (1:300 dilution). Following subsequent washes, the sections were incubated in HB5255 (Streptavidin HRP) for 30 minutes at room temperature (1:500 dilution). The reaction was developed using DAB (HB0687) and counterstained using hematoxylin (HB6189) before sections were dehydrated and mounted using DPX. For more details, please see our paraffin embedded immunohistochemistry protocol. Images were taken on a standard widefield microscope using brightfield illumination and either 5x or 40x objectives.
Figure 4. Tyrosine hydroxylase expression in various tissue lysates and preparations (MES buffered Bis-Tris gel).
HB7167 revealed a ≈72kDa band associated with tyrosine hydroxylase only in neural tissue samples. Please note tyrosine hydroxylase runs at a higher apparent molecular weight in MES buffered Tris-Bis gels. Method: mouse brain and rat brain membrane (P2) and cytosol fractions were prepared following previous work (Molnar et al., 1993. Neuroscience 53:307-326) from freshly collected adult brains. Other tissue lysates were prepared following established protocols from freshly dissected tissue (see our guide on WB sample preparation). Samples were loaded (20µg / lane) onto a 4-20% bis-tris acrylamide gel alongside a protein ladder before being run at 180V for 45 minutes. Wet transfer to a PVDF membrane was completed in 90 minutes using 400mA. The membrane was blocked for 2hrs in 5% non-fat dry milk before being incubated overnight at 4°C in HB7167 at a 1:1,000 dilution. Following washing, the membrane was incubated in secondary antibody (1:10,000 dilution, Polyclonal goat anti-mouse HRP conjugated, Sigma, A3682) for 2hrs. For more detail please see our Western blotting protocol. Detection was accomplished using Clarity Western ECL substrate (BioRad, 1705061) and a Licor Odyssey Fc imaging system (ECL channel: 5 min exposure, 700nm channel: 30 sec exposure). Following imaging the membrane was stripped with two changes of stripping buffer (HB7756) before being washed, blocked for 2 hours in 5% non-fat dry milk and incubated in HB9177 (mouse monoclonal anti-GAPDH, 1:4,000 dilution, 0.25µg/ml) overnight at 4°C. Following washing the membrane was incubated in a 1:10,000 dilution of a polyclonal goat anti-mouse HRP conjugated secondary antibody (Sigma Aldrich A3682) for 2hrs and visualised again using Clarity Western ECL substrate (BioRad, 1705061) and a Licor Odyssey Fc imaging system (ECL channel: 4 min exposure, 700nm channel: 30 sec exposure).
Figure 5. Independent antibody validation of HB7167 and HB6589 in dopaminergic midbrain neurons.
The staining patterns of HB7167 and HB6589 completely overlap in rat midbrain dopaminergic neurons showing strong evidence for antibody specificity. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1000 dilution) and HB6589 (1:1000 dilution). This was followed by a two-hour incubation with secondary antibodies at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540 and polyclonal donkey anti-chicken DyLight 488, Thermofisher, A78948). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 100x objective in a z-stack (0.22µm spacing). The image was captured as a tilescan using A4 (72ms @1x gain exposure), GFP (70ms @ 1x gain exposure) and Y3 (10ms @ 3.3x gain exposure) filters. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 6. Concentration response of HB7167 staining in rat striatum.
HB7167 stains rat dopaminergic terminals in the striatum with high signal to noise at dilutions down to 1:8,000. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 and HB6498 (1:1,000 (1µg/ml) to 1:8,000 (0.125µg/ml) dilutions). This was followed by a two-hour incubation with secondary antibody at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540 and polyclonal goat anti-rabbit DyLight 650, Thermofisher 11804574). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol.
Images were captured using a Leica DMI6000B inverted epifluorescence microscope and a 100x objective in a z-stack (0.6µm spacing). Stacks were deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682). Exposure times were as follows:
• 1:1,000 – DAP: 10ms, RHO: 42ms, Y5: 27ms
• 1:2,000 – DAP: 10ms, RHO: 118.9ms, Y5: 92ms
• 1:4,000 – DAP: 10ms, RHO: 100.2ms, Y5: 139ms
• 1:8,000 – DAP: 10ms, RHO: 128.2ms, Y5: 161ms
Figure 7. Tyrosine hydroxylase staining in rat striatum visualized using HB7167.
HB7167 effectively stains the dense network of dopaminergic terminals in the caudate putamen of paraffin embedded horizontal rat brain sections. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 70% ethanol and embedded in paraffin. Deparaffinization was carried out following cutting of the tissue block into 5µm sections. Antigen retrieval was carried out using citrate buffer (HB8687) at 95°C for 20 minutes before sections were blocked in 1% BSA, 10% serum. HB7167 was incubated overnight (4°C) at 1µg/ml (1:1,000 dilution). Following washing and peroxide blocking with 0.3% H2O2, the sections were incubated in HB11345 (goat anti-mouse H&L biotin antibody) for 1 hour at room temperature (1:300 dilution). Following subsequent washes the sections were incubated in HB5255 (Streptavidin HRP) for 30 minutes at room temperature (1:500 dilution). The reaction was developed using DAB (HB0687) and counterstained using hematoxylin (HB6189) before sections were dehydrated and mounted using DPX. For more details, please see our paraffin embedded immunohistochemistry protocol. Images were taken on a standard widefield microscope using brightfield illumination and a 5x objective.
Figure 8. Independent antibody validation of HB7167 and HB6589 in dopaminergic projections.
The staining patterns of HB7167 and HB6589 completely overlap in rat dopaminergic projections showing strong evidence for antibody specificity. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1,000 dilution) and HB6589 (1:1,000 dilution). This was followed by a two-hour incubation with secondary antibodies at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540 and polyclonal donkey anti-chicken DyLight 488, Thermofisher, A78948). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 40x objective in a z-stack (0.62µm spacing). The image was captured as a tilescan using DAP (49ms exposure), L5 (15ms exposure) and RHO (10ms exposure) filters. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 9. Tyrosine hydroxylase expression in various tissue lysates and preparations.
HB7167 revealed the ≈62kDa band associated with tyrosine hydroxylase only in neural tissue samples. Method: mouse brain and rat brain membrane (P2) and cytosol fractions were prepared following previous work (Molnar et al., 1993. Neuroscience 53:307-326) from freshly collected adult brains. Other tissue lysates were prepared following established protocols from freshly dissected tissue (see our guide on WB sample preparation). Samples were loaded (20µg / lane) onto a 12% acrylamide gel alongside a protein ladder before being run at 60V for 30 minutes followed by 160V for 60 minutes. Wet transfer to a PVDF membrane was completed in 90 minutes using 400mA. The membrane was blocked for 2hrs in 5% non-fat dry milk before being incubated overnight at 4°C in HB7167 at a 1:1,000 dilution. Following washing, the membrane was incubated in secondary antibody (1:10,000 dilution, Polyclonal goat anti-mouse HRP conjugated, Sigma, A3682) for 2hrs. For more detail please see our Western blotting protocol. Detection was accomplished using Clarity Western ECL substrate (BioRad, 1705061) and a Licor Odyssey Fc imaging system (ECL channel: 5 min exposure, 700nm channel: 30 sec exposure). Following imaging the membrane was stripped with two changes of stripping buffer (HB7756) before being washed, blocked for 2 hours in 5% non-fat dry milk and incubated in HB9177 (mouse monoclonal anti-GAPDH, 1:4,000 dilution, 0.25µg/ml) overnight at 4°C. Following washing the membrane was incubated in a 1:10,000 dilution of a polyclonal goat anti-mouse HRP conjugated secondary antibody (Sigma Aldrich A3682) for 2hrs and visualized again using Clarity Western ECL substrate (BioRad, 1705061) and a Licor Odyssey Fc imaging system (ECL channel: 4 min exposure, 700nm channel: 30 sec exposure).
Figure 10. Independent antibody validation of HB7167 and HB6589 in CPu.
The staining patterns of HB7167 and HB6589 completely overlap in rat caudate putamen (CPu) showing strong evidence for antibody specificity. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 30% sucrose (in PBS) until sunk (approx. 48hrs). A freezing microtome was used to cut 40µm horizontal slices before sections were incubated in 1% NaBH4 for 15 minutes. Sections were blocked in 0.05M glycine, 2% BSA and 3% goat serum before incubation overnight in HB7167 (1:1000 dilution), HB6498 (1:1000 dilution) and HB6589 (1:1000 dilution). This was followed by a two-hour incubation with secondary antibodies at a 1:300 dilution (polyclonal goat anti-mouse DyLight 550, Thermofisher, 84540, polyclonal donkey anti-chicken DyLight 488, Thermofisher, A78948 and polyclonal goat anti-rabbit DyLight 650, Thermofisher, 11804574). DAPI (HB0747) was used at 1µg/ml to visualise cell nuclei and sections were mounted using MightyMount Antifade Fluorescence Mounting Medium (hardset). For more detail please see our IHC(IF) protocol. The image was captured using a Leica DMI6000B inverted epifluorescence microscope. The image was captured using a 40x objective in a z-stack (0.3µm spacing). The image was captured as a tilescan using DAP (10ms exposure), L5 (15ms exposure), RHO (10ms exposure) and Y5 (12ms exposure) filters. The stack was deconvolved using Huygens professional then flattened using a maximum Z projection in ImageJ (Schindelin et al., 2012. Nat Methods, 9(7), 676–682).
Figure 11. Tyrosine hydroxylase staining of dopaminergic nuclei in rat midbrain visualized using biotin-streptavidin detection.
HB7167 staining visualizes the large population of dopaminergic neurons in the rat midbrain. Method: Rat brains were dissected and fixed overnight in 4% PFA before then being incubated in 70% ethanol and embedded in paraffin. Deparaffinization was carried out following cutting of the tissue block into 5µm sections. Antigen retrieval was carried out using citrate buffer (HB8687) at 95°C for 20 minutes before sections were blocked in 1% BSA, 10% serum. HB7167 was incubated overnight (4°C) at 2µg/ml (1:500 dilution). Following washing and peroxide blocking with 0.3% H2O2, the sections were incubated in HB11345 (goat anti-mouse H&L biotin antibody) for 1 hour at room temperature (1:300 dilution). Following subsequent washes the sections were incubated in HB5255 (Streptavidin HRP) for 30 minutes at room temperature (1:500 dilution). The reaction was developed using DAB (HB0687) and counterstained using hematoxylin (HB6189) before sections were dehydrated and mounted using DPX. For more details, please see our paraffin embedded immunohistochemistry protocol. Images were taken on a standard widefield microscope using brightfield illumination and a 5x objective.
Product information
| Immunogen | PC12 cell derived tyrosine hydroxylase |
| Clone number | LNC1 |
| Isotype | IgG1 |
| Purification | Protein G affinity chromatography |
| Concentration | 1 mg/ml |
| Formulation | Lyophilised. When reconstituted contains 10 mM Tris (pH7.4), 50 mM NaCl, 1% recombinant BSA and 0.065% Sodium Azide |
| Predicted species reactivity | Mouse, Rat, Human, Zebrafish, Chicken |
| Tested species reactivity | Mouse, Rat |
Tested applications
| Applications | IHC-P, WB, IHC(IF) |
| Western blot optimal concentration | 1:1000 (1µg/ml) as tested in a rat brain cytosol preparation |
| IHC(IF) optimal concentration | 1:2000 (0.5µg/ml) as tested in rat striatal brain sections |
| IHC-P optimal concentration | 1:1000 (1µg/ml) as tested in paraffin embedded rat horizontal brain sections using streptavidin-HRP detection system. |
| Positive control | Tissue known to have a high expression of catecholaminergic neurones (e.g. striatum or substantia nigra). PC-3 and SK-BR-3 cell lines also show tyrosine hydroxylase expression. |
| Negative control | Areas of the brain with low expression of catecholaminergic neurones (e.g. cortex). Most cells lines do not express TH (e.g. HEK293, HeLa, SH-SY5Y). |
| Open data link | Please follow this link to the OSF |
Target information
| Other names | Tyrosine 3-monooxygenase, Tyrosine 3-hydroxylase, TH |
| UniProt ID | P07101 |
| Structure image |  |
| Gene name | TH |
| NCBI full gene name | tyrosine hydroxylase |
| Entrez gene ID |
| Amino acids | 528 (58.6kDa) |
| Isoforms | Tyrosine hydroxylase has 6 isoforms produced by alternative splicing:
|
| Expression | Mainly expressed in the dopaminergic, noradrenergic and other catecholingergic neurones in the brain and adrenal glands. There is also lower peripheral expression in a variety of tissues. |
| Subcellular expression | Expression is enriched in axon terminals alongside cytosolic and perinuclear expression. |
| Processing | None |
| Post translational modifications | Subject to phosphorlyation on Ser19, Ser62, Ser71 and Ser502. |
| Homology (compared to human) | Mouse and rat show 82.8% and 83.7% identity to human tyrosine hydroxylase respectively in a BLAST search. |
| Similar proteins | The following proteins were identified as being similar in a BLAST search:
|
Storage & Handling
| Storage instructions | -20°C then use reconstitution advice |
| Reconstitution advice | We recommend reconstituting with either:
Take care when opening as the precipitate is extremely light and can easily be lost if disturbed. When reconstituting make sure that the antibody is thoroughly dissolved by pipetting up and down before giving the antibody a brief spin at <10,000g to make sure that all material is recovered and at the bottom of the tube. For more information please see our detailed guide on storing and using your antibody |
| Important | This product is for RESEARCH USE ONLY and is not intended for therapeutic or diagnostic use. Not for human or veterinary use |
Technical guides
Western Blot Protocol (1 MB) Immunocytochemistry Protocol (1.2 MB) Immunohistochemistry Protocol (1.6 MB) References for Anti-Tyrosine hydroxylase antibody ValidAbTM
References are publications that support the biological activity of the product
-
Tyrosine hydroxylase and regulation of dopamine synthesis.
Daubner SC et al (2011) Archives of biochemistry and biophysics 508 : 1-12 -
Tyrosine hydroxylase deficiency: a treatable disorder of brain catecholamine biosynthesis.
Willemsen MA et al (2010) Brain : a journal of neurology 133 : 1810-22 -
Tyrosine hydroxylase phosphorylation: regulation and consequences.
Dunkley PR et al (2004) Journal of neurochemistry 91 : 1025-43 -
Drug-induced changes in brain tyrosine hydroxylase activity in vivo.
Leonard BE (1977) Neuropharmacology 16 : 47-52 -
Drug-induced changes in brain tyrosine hydroxylase activity in vivo.
Leonard BE (1977) Neuropharmacology 16 : 47-52
