Clozapine N-oxide (CNO) (freebase)

(HB1807)
Technical documents: SDS CoA Datasheet

Product overview

Name Clozapine N-oxide (CNO) (freebase)
Alternative names CNO, CNO freebase
Purity >98%
Customer comments

Your technical review on CNO stability, solubility and use in the lab has been really helpful to my group. Verified customer

Exactly as described - Clozapine N-oxide (CNO) (freebase) does exactly what it should. Great product and company. Verified customer, Istituto Italiano di Tecnologia

Description Prototypical DREADD activator. Clozapine metabolite.
Write Your Own Review
You're reviewing:Clozapine N-oxide (CNO) (freebase)
Rate this item:

Images

Clozapine N-oxide: Scientist Approved

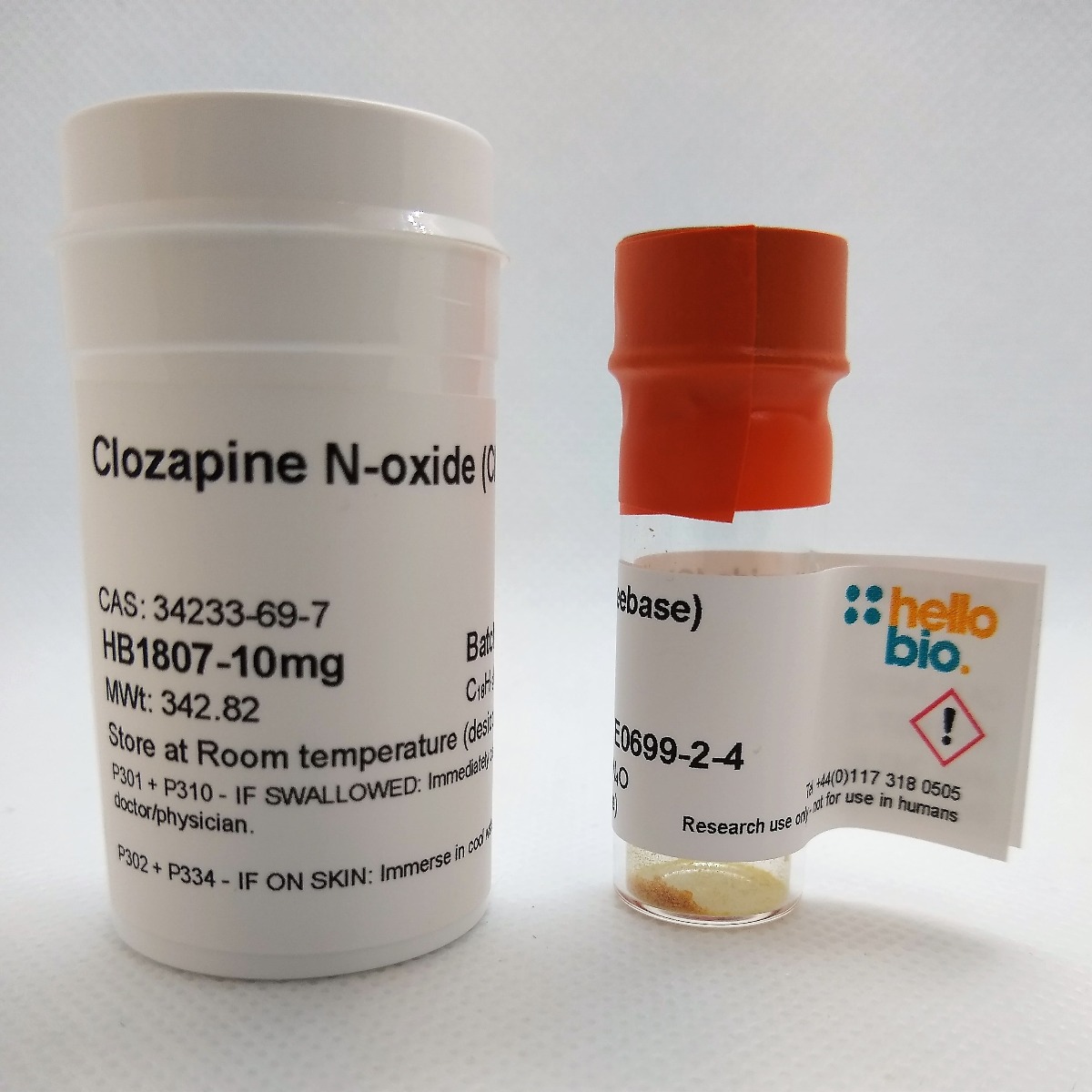

Clozapine N-oxide (CNO) (freebase) product vial image | Hello Bio

Biological Data

Biological description

Overview

Clozapine N-oxide CNO) is the prototypical chemical actuator for various DREADDs. It is a metabolite of the atypical antipsychotic clozapine.


Uses
‘Excitatory’ (Gq- coupled) DREADDs:

CNO activates the excitatory Gq- coupled DREADDs: hM3Dq, hM1Dq and hM5Dq (pEC50 values are 7.26 and 8.61 at hM3Dq and hM1Dq respectively).

The hM3Dq DREADD is typically used for enhancing neuronal firing and activity (Gq- signaling in neuronal and non-neuronal cells).

‘Inhibitory’ (Gi- coupled) DREADDs:

CNO also activates the inhibitory hM4Di and hM2Di Gi-coupled DREADDs (pEC50 = 6.89 at hM4Di).

The hM4Di DREADD is the most commonly used inhibitory DREADD and is used for neuronal silencing.

Gs and β-arrestin coupled DREADDs:

CNO also activates the Gs- coupled DREADD (GsD) and the β-arrestin preferring DREADD: rM3Darr (Rq(R165L).


Recent findings (Gomez et al 2017) suggest that systemically administered CNO does not readily cross the blood-brain-barrier in vivo, and converts to clozapine which activates DREADDs. Enzymatic and non-enzymatic reduction of CNO to clozapine has been shown in humans, rats, monkeys, guinea pigs and mice.

Care must therefore be taken in experimental design and proper controls should be incorporated, for example, the use of non-DREADD expressing animals may be appropriate (see Mahler and Aston-Jones (2018)).


Jendryka et al (2019) found that in mice, CNO does enter the brain and that unbound CNO is present in the brain at sufficient levels to activate DREADDs directly. Results suggested that CNO is a suitable DREADD agonist but requires between-subject controls for unspecific effects.


CNO has proved to be an effective actuator of muscarinic DREADDs and provided controls are in place, will continue to be an excellent tool. Compound 21 (DREADD agonist 21) represents an alternative to CNO for in vivo studies in which metabolic conversion of CNO to clozapine is an issue (Thompson et al 2019).


Administration
In the literature, CNO has been administered intraperitoneally (i.p.), subcutaneously, directly infused intracranially, via drinking water, osmotic mini-pump and recently via eye drops. See our Technical review (table 3) for example administration methods and doses.


Water soluble Clozapine N-oxide (CNO) dihydrochloride is also available:

Clozapine N-oxide (CNO) dihydrochloride is water soluble and easier to solubilise and handle. Our stability studies have found that this product does not precipitate in aqueous solution unlike the freebase form of CNO (which due to its inherent chemical properties requires careful handling, has been shown in the literature to precipitate in solution under certain conditions and batch to batch variation in solubility can occur).


In rhesus macaques, CNO dihydrochloride shows improved bioavailability compared to CNO freebase with less conversion to clozapine


Stability Studies

For more info on the stability of CNO (freebase) and water-soluble CNO dihydrochloride, please see the following guides:

Solubility & Handling

Storage instructions Room temperature (desiccate)
Solubility overview Soluble in DMSO (100mM).
Handling

Due to the inherent chemical properties of CNO, this product requires careful handling – our guidelines are detailed below.

Batch to batch variation in solubility can occur. Some batches are water soluble but ongoing solubility in aqueous solutions can be unpredictable.

CNO has been shown in the literature to precipitate in aqueous solution and following further solubility studies that we have undertaken, we have found that precipitation occurred in some concentrated (100mM) samples of CNO dissolved in water.

We therefore recommend using DMSO when working with CNO freebase. If you need to work with aqueous solutions, you should use CNO dihydrochloride which is easier to solubilize and handle than CNO freebase. Our stability studies have found that this product does not precipitate in solution.


Solubilizing in DMSO

CNO (freebase) is soluble in DMSO to 100 mM.

Storage of solutions in DMSO

  1. Aliquot out the solution into tightly sealed vials for storage.
  2. Storage of solutions should be at room temperature.
  3. Please take care to ensure that your product is completely dissolved in your solution before use.

Solubilizing CNO (freebase) in aqueous solutions (e.g. water / saline)

We do not recommend using CNO freebase with aqueous solutions however, we provide these guidelines if you do:

When working with the compound in aqueous solutions, we recommend:

  1. Make up solutions and use immediately. Do not store solutions.
  2. Ensure you work in a dust free environment when preparing and handling solutions.
  3. Ensure that the product and solvents are at ambient temperature before preparing solutions. This means that you should allow the product to equilibrate to RT for at least one hour before opening and using.
  4. Please take care to ensure that your product is completely dissolved in your solution before use.

Stability

Our stability studies have shown that CNO in solution remains chemically stable (>99% purity by HPLC) for at least 4 weeks at room temperature.

Storage of solutions in aqueous solutions (e.g. water/saline

We recommend that you do not store aqueous solutions of CNO. However, if this is necessary:

  • Aliquot out the solution into tightly sealed vials for storage. Storage of solutions should be at room temperature.
  • Always check that your product is completely dissolved before use; if precipitation is found follow the steps below.
  • Do not store solutions at temperatures below room temperature (i.e. +4°C/ -20°C) - this is more likely to lead to precipitation of the compound.
  • Preferably, solutions should be made in transparent, colorless vials so that any precipitation can be observed and remedied prior to use.

Precipitation

If you find precipitate in your solution, gently heat your solution in a water bath to approx 40°C and the compound should readily re-dissolve. Always take care to ensure that the compound is completely dissolved before use.


Water soluble alternatives:

CNO dihydrochloride is now available and is also water soluble. It is easier to solubilise and handle and unlike the freebase form of CNO, our stability studies have found that this product does not precipitate in solution.



Important This product is for RESEARCH USE ONLY and is not intended for therapeutic or diagnostic use. Not for human or veterinary use.

Calculators

Molarity

=
x
x
More Info

Dilution

x
=
x
More Info

Chemical Data

Purity >98%
Chemical name 8-Chloro-11-(4-methyl-4-oxido-1-pip erazinyl)-5H-dibenzo[b,e][1,4]diazepine
Molecular Weight 342.82
Chemical structure Clozapine N-oxide | [34233-69-7] Chemical Structure
Molecular Formula C18H19ClN4O
CAS Number 34233-69-7
PubChem identifier 2819
SMILES C[N+]1(CCN(CC1)C2=C3C=CC=CC3=NC4=C(N2)C=C(C=C4)Cl)[O-]
Source Synthetic
InChi InChI=1S/C18H19ClN4O/c1-23(24)10-8-22(9-11-23)18-14-4-2-3-5-15(14)20-16-7-6-13(19)12-17(16)21-18/h2-7,12,21H,8-11H2,1H3
InChiKey WYRDWWAASBTJLM-UHFFFAOYSA-N
MDL number MFCD00210190
Appearance Yellow solid

FAQs

What should CNO (freebase) look like?

CNO (freebase) is an amorphous, yellow powder

What temperature should I store the solid compound at?

We undertake regular quality control analysis of the solid compound and have found no deterioration in product purity when stored at room temperature.

We recommend that you store solid CNO (freebase) powder at room temperature (desiccate).

Is the solid powder light sensitive?

No - we have found no evidence for Hello Bio CNO (free base) to be sensitive to light.

Is the solid powder air sensitive?

No - we have found no evidence for Hello Bio CNO (freebase) to be sensitive to air.

How do I weigh the compound to make my stock solution?

You should weigh out the quantity of product that you require for your experiment as the amount of product in our vials isn’t weighed out accurately enough for direct addition of solution.

What should I do if I find precipitate in my stock solution?

Gently heat your solution in a water bath to ~40°C and the compound should readily re-dissolve. Always take care to ensure that the compound is completely dissolved before use.

What concentration should my stock solution be?

This depends on your experiment and the working concentration you require.

What should my stock solution look like?

When dissolved your solution of CNO (freebase) should be a clear, yellow to orange color (depending on the concentration)

How do I solubilize CNO to make my stock solution? Which solvent / buffer can I use?

Batch to batch variation in the solubility of CNO (freebase) can occur. Although some batches are soluble in aqueos soution, the ongoing solubility of these solutions can be unpredictable. This has been shown in the literature and in our stability studies.

Therefore, when working with CNO (freebase) we recommending using DMSO (100mM).

Various groups have different approaches to solubilizing CNO. DMSO is commonly used to dissolve CNO before addition to saline for injection.

Can I store my stock solution of Clozapine N- oxide (CNO (freebase)?

We recommend making up solutions and using them immediately. Do not store solutions.

How long does Clozapine N-oxide (CNO freebase) stay stable in solution?

Our stability studies have shown that CNO in solution remains chemically stable (>99% purity by HPLC) for at least 4 weeks at room temperature. Please see stabiltiy data below.

Is my stock solution light sensitive?

No - we have found no evidence that Hello Bio CNO (freebase) is light sensitive.

Is my stock solution air sensitive?

No - we have found no evidence that Hello Bio CNO (freebase) is air sensitive.

References for Clozapine N-oxide (CNO) (freebase)

References are publications that support the biological activity of the product
  • A Comparative Study of the Pharmacokinetics of Clozapine N-Oxide and Clozapine N-Oxide Hydrochloride Salt in Rhesus Macaques.

    Allen et al (2019) J Pharmacol Exp Ther 368(2) : 199-207
  • Pharmacokinetic and pharmacodynamic actions of clozapine-N-oxide, clozapine, and compound 21 in DREADD-based chemogenetics in mice.

    Jendryka et al (2019) Sci Rep. 9(1) : 4522
  • DREADDs: The Power of the Lock, the Weakness of the Key. Favoring the Pursuit of Specific Conditions Rather than Specific Ligands.

    Goutaudier et al (2019) eNeuro 6 : (5)
  • CNO Evil? Considerations for the Use of DREADDs in Behavioral Neuroscience.

    Mahler and Aston-Jones (2018) Neuropsychopharmacology doi: 10.1038 : npp.2017.299
  • DREADD Agonist 21 Is an Effective Agonist for Muscarinic-Based DREADDs in Vitro and in Vivo

    Thompson et al (2018) ACS Pharmacol. Transl. Sci. 10.1021 : /acsptsci.8b00012

Items 1 to 5 of 11 total

Page
Publications
These publications cite the use of Clozapine N-oxide (CNO) (freebase) purchased from Hello Bio:
  • SCN VIP neurons are essential for normal light-mediated resetting of the circadian system.

    Jones et al (2018) J Neurosci pii: 1322-18. : doi: 10.1523/JNEUROSCI.1322-18.2
    PubMedID: 30082421
  • Cholinergic modulation of spinal motoneurons and locomotor control networks in mice

    Nascimento, F (2018) Thesis : St Andrews University
  • The Neurochemistry and Neural Circuitry of Stress Resilience

    Brooke, ND (2018) Thesis 8- : 2018
  • In vitro and in vivo properties of GLP-1 producing neurons: the brain actions of a gut hormone

    Marie Kragelund Bachmann Holt (2017) Thesis : UCL
  • Chemogenetic Stimulation of Electrically Coupled Midbrain GABA Neurons in Alcohol Reward and Dependence

    Pistorius et al (2017) Thesis https://scholarsarchive.byu.edu/etd/6813/ : Brigham Young University

Items 26 to 30 of 31 total

Page
